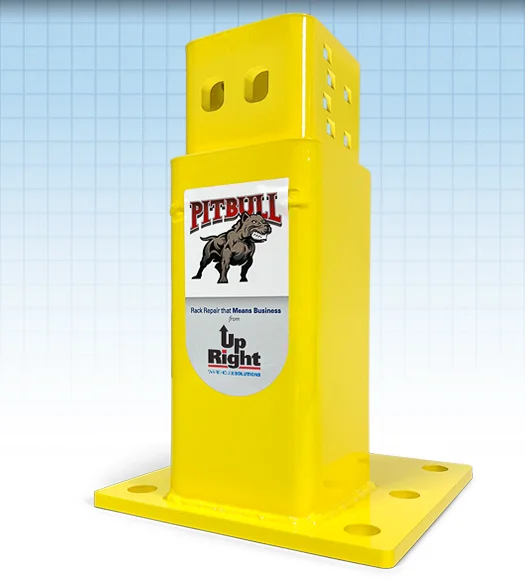

Upright PITBULLTM
IT’S NOT JUST A REPAIR, IT’S AN UPGRADE!
PitBull is pallet rack repair at its most tenacious!
Forged from rugged structural steel, The UpRight PitBull is a dual-purpose repair solution that removes damage to the bottom of the front column and replaces it with robust outrigger impact protection reaching up to over 10″ off the floor. This added muscle makes the original OEM parent structure exceedingly more impact resistant than when it was new
With forklift damage happening predominantly near floor level, PitBull places maximum protection where it’s its needed most, making your facility more durable and substantially safer.
UpRight has over 25 years of experience serving Fortune 500 client locations. The PitBull repair kit is proudly made in the USA with Certified American Steel and supported by 100% US supply chains, and backed by UpRight Warehouse Solutions’ Warranty.
Key Features Include
- Dominant reinforcement of the most vulnerable section of your frames, up to a depth of 6″
- Lower PitBull cross-section is a combined 1/2″ of heavy-duty steel reaching as high as 11.25″ off the floor
- Replaces damage in lower 6, 8, or up to 10″ of post
- Top clamp defends an additional 5″ of post for a total of up to 15″ of unyielding impact protection
- Fits 3″, 4″ or 3″ reinforced posts with narrow or wide footplate, or 4″ reinforced posts with wide footplate
- Once installed, no secondary guard is necessary
- Compatibility with most brands and punch styles
The Upright pitbull repair Kit Family
PitBull LOW
Narrow Footplate
For Damage up to 6″
Max Protection of 7″
Overall Kit Height 11″
Footplate: 5″x12″
PitBull HIGH
Narrow Footplate
For Damage up to 8″
Max Protection of 9″
Overall Kit Height 13″
Footplate: 5″x12″
PitBull LOW
Wide Footplate
For Damage up to 6″
Max Protection of 7″
Overall Kit Height 11″
Footplate: 9″x9″
PitBull HIGH
Wide Footplate
For Damage up to 8″
Max Protection of 9″
Overall Kit Height 13″
Footplate: 9″x9″
Extra Deep for
Reinforced Posts
For Damage up to 8″
Max Protection of 9″
Overall Kit Height 13″
Footplate: 9″x9″
